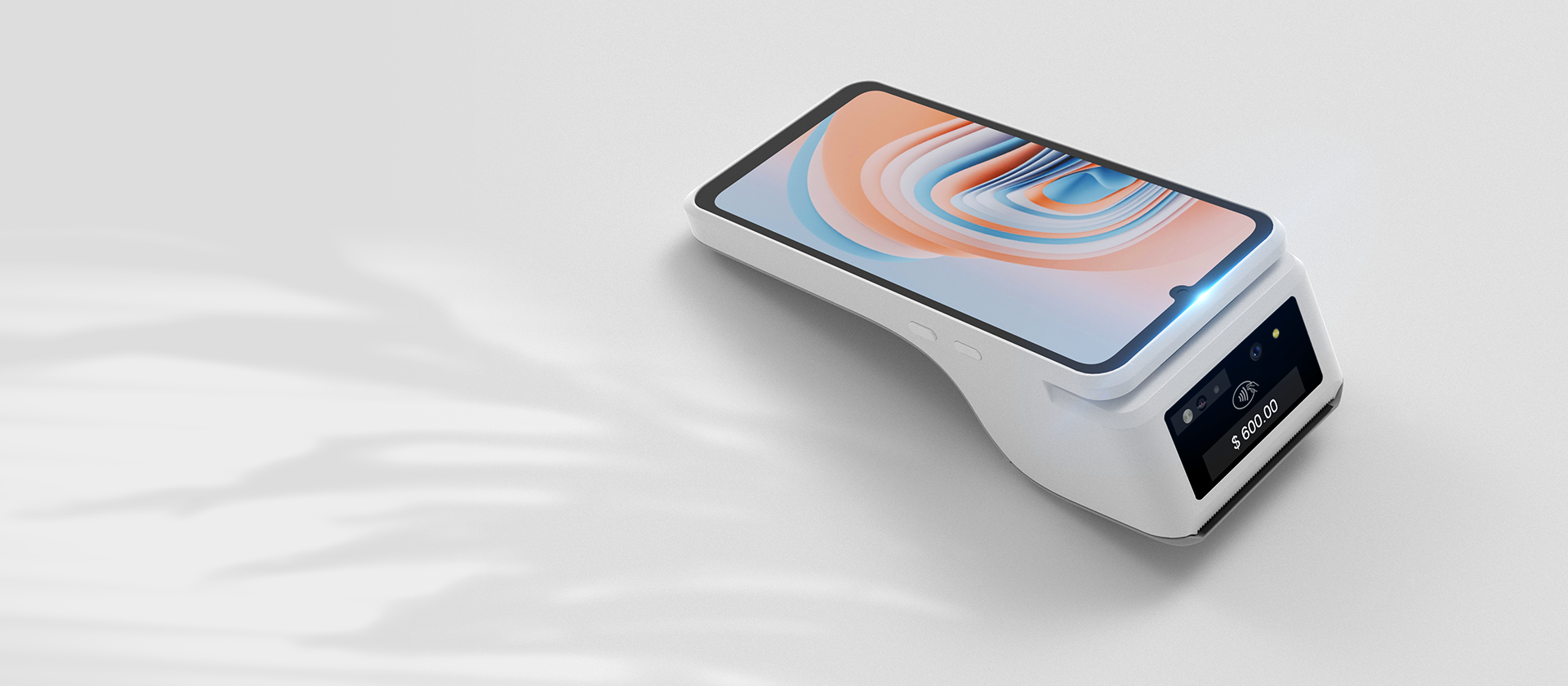

NEW9830

Smart POS Terminal

One device to solve all your payment needs

CPU

Lowest Cortext-A53 Quad Core 2.0GHz CPU

OS

Android 13
Bigger Screen

6.745-inch HD+, 1600x720
Memory

Maximum RAM 4GB
Maximum Flash 64GB
Battery

7.7V/3420mAh

Latest Generation Performance

NEW9830 is equipped with at least ARM Cortext-A53 quad-core processor with a speed of 2.0GHz. The memory starts at 2GB RAM + 8GB FLASH. It uses the latest Android 13 version. The performance of NEW9830 is excellent.

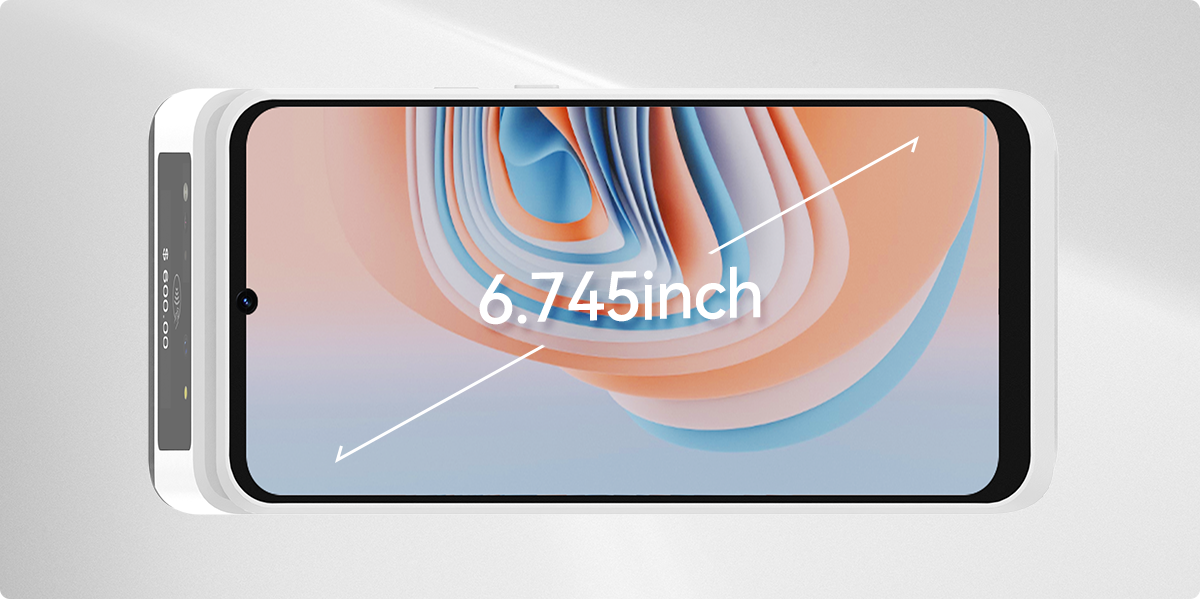

Maximum Screen Size

NEW9830 is the portable POS terminal with a 6.745” big screen to deliver extraordinary visual and operation experience.

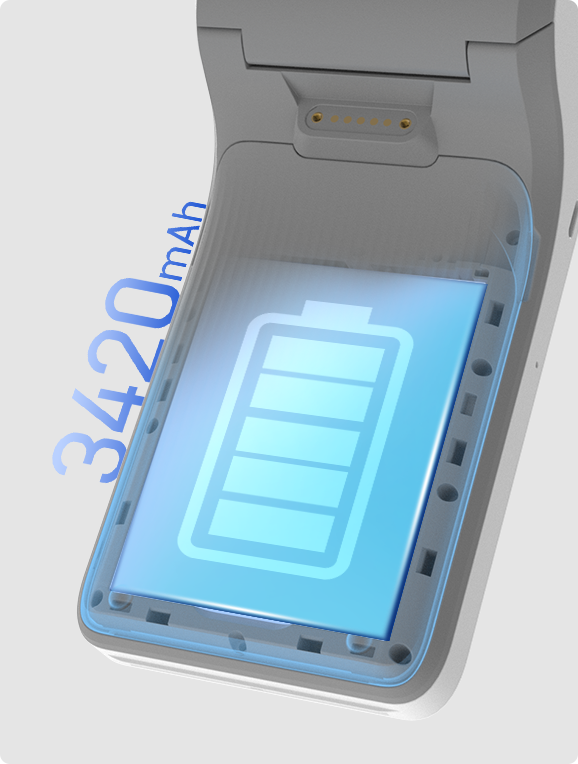

Large-capacity battery

Upgraded to polymer battery, longer battery cycle life. The maximum capacity can be increased to 7.7V/3420mAh.

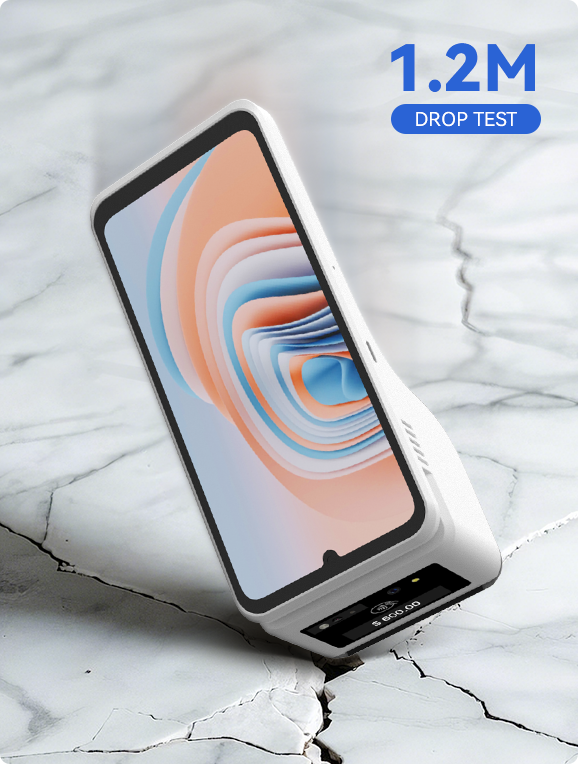

Built tough and drop-resistant

This high-reliability design is ready for use in even the harshest environments.Successfully passed a 1.2M drop test on marble.

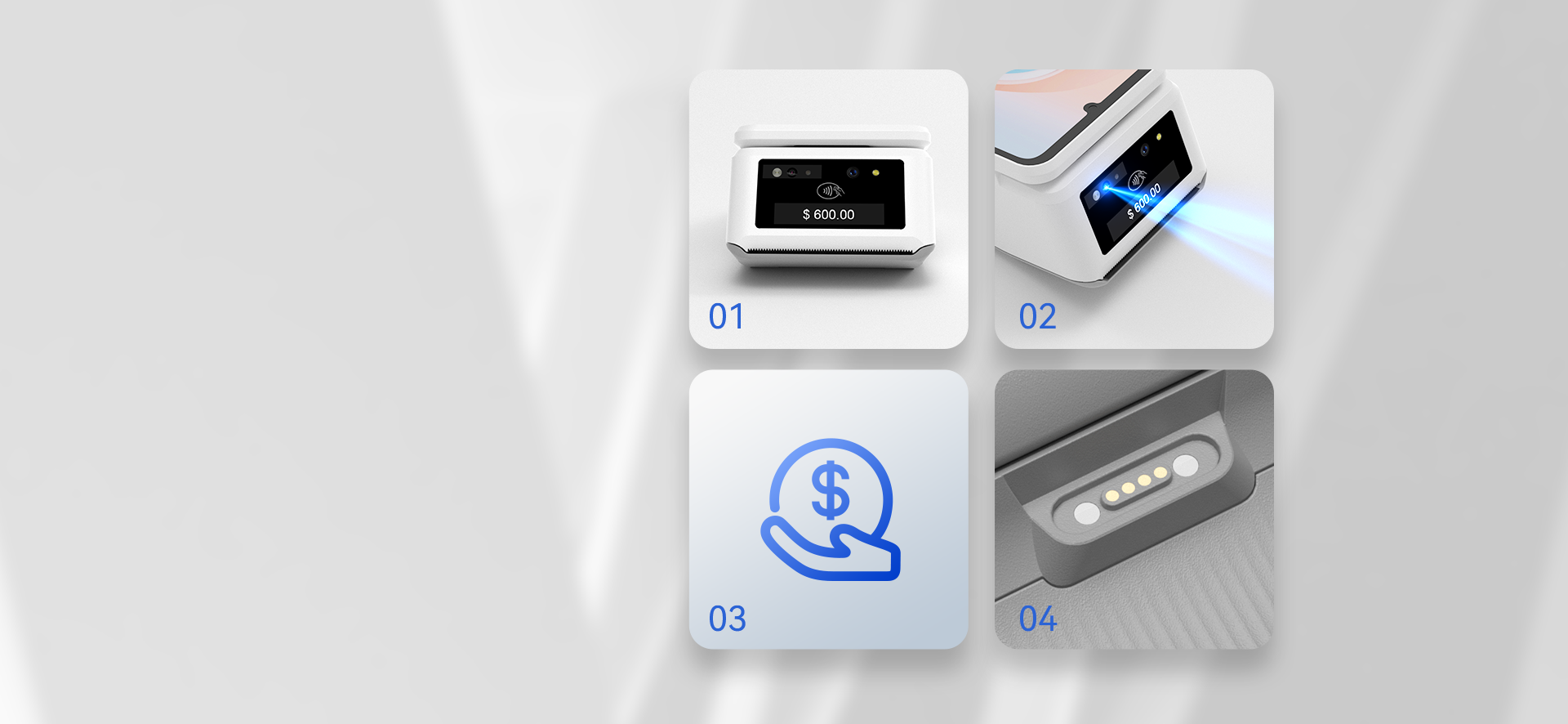

More Configuration Options

01、Customer Display

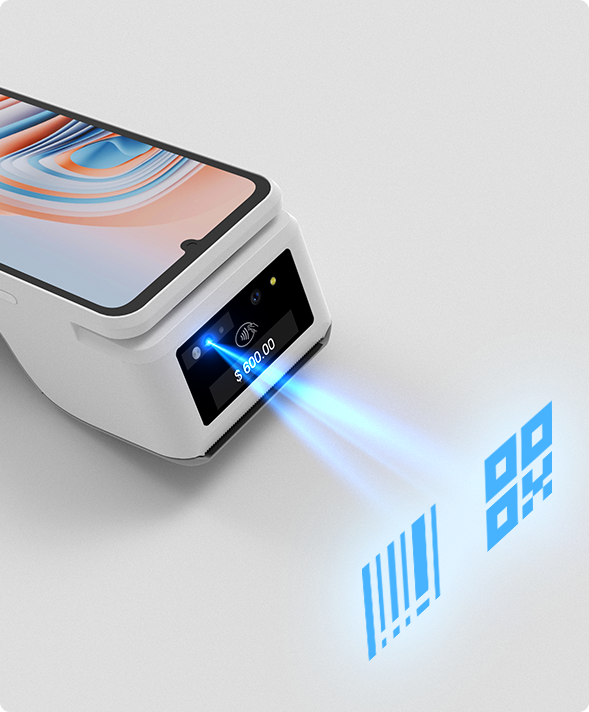

02、Scanning
03、Fiscal Module
04、Magnetic Charging

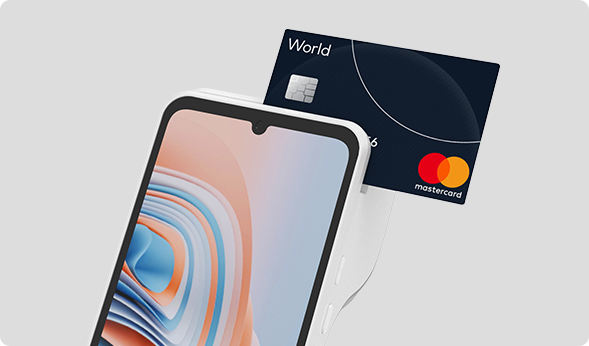

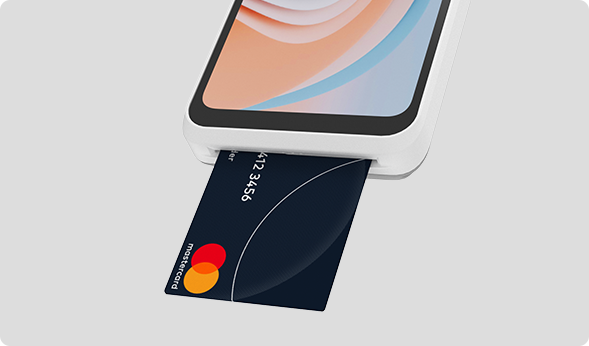

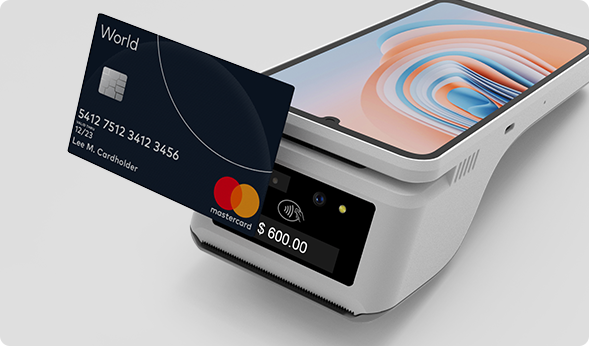

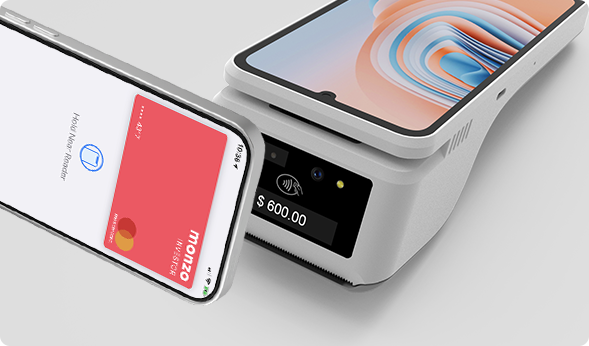

Supporting All Payments

It supports various payment methods, such as magnetic card, IC card, contactless transaction and code scanning transaction. A machine can be used for various forms, making collection simple.

1D&2D QR
IC Card
Magnetic Card
Mobile Payment
NFC

Flexible Adaptability

Restaurants, retail, banks, government, hospitals

Restaurant Hotels Banks Retail Hospitals

Technical Specifications

OS

Asmart, Powered by Android 13
Processor

Cortex A53 Quad-Core, 2.0GHz + Secure Processor Octa-Core, 4xA53 2.0GHz, 4xA53 1.5GHz + Secure Processor
Memory

2GB RAM + 8GB Flash 2GB RAM + 32GB Flash Extended MicroSD Card Slot Up to 256GB
Card Readers

Magnetic Stripe | Chip & PlN | Contactless
Cameras

Front: 2MP Fixed Focus Front: N/A Top: 5MP Auto Focus, with Flashlight Top: 2MP Fixed Focus Top: 13MP Auto Focus, with Flashlight
Scanner

Top: 1D/2D professional scanner
Displays

Main Display: 6.745" IPS HD+, 720 x 1600 Pixels Multi-Point Capacitive Touch Screen Customer Display: Dot-matrix LCD, 130 x 32 Pixels
Wireless Communication

2G/3G/4G Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz Bluetooth5.0
Battery

Removable Polymer Battery 7.6V/2500mAh/19Wh (Equal to 3.6V/5278mAh ) 7.7V/3420mAh/26.3Wh (Equal to 3.6V/7315mAh )
Printer

Speed: 80mm/sec | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
Card Slots

2 Micro SIM + 2 Mini SAM + 1 Micro SD eSIM + 1 Micro SIM + 2 Mini SAM + 1 Micro SD
Positioning

GPS | GLONASS | BEIDOU | GALILEO
Buttons

1 Power ON/OFF，1 Function
Fiscal

Fiscal Module
Audio

1 Speaker 1 Microphone
Ports

1 USB Type-C OTG | 5 PIN POGO PIN for Base 1 USB Type-C OTG | 4 PIN POGO PIN for Magnetic Charging
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: DC 5V/2A
Physical

192.5 x 81 x 57mm, 430g (including 2500mAh battery)
Operating Environment

Operating Temperature: 0°C~50°C (32°F~122°F) Relative Humidity: 5%~95% (Non-Condensing)
Storage Environment

Storage Temperature: -20°C~60°C (-4°F~140°F ) Relative Humidity: 5%~95% (Non-Condensing )
Accessories

Charging Base Multifunction Base Magnetic Charging
Certifications

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave | MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Anatel | ABECS | MasterCard TQM | CE | RoHS | Bancomat on Going
