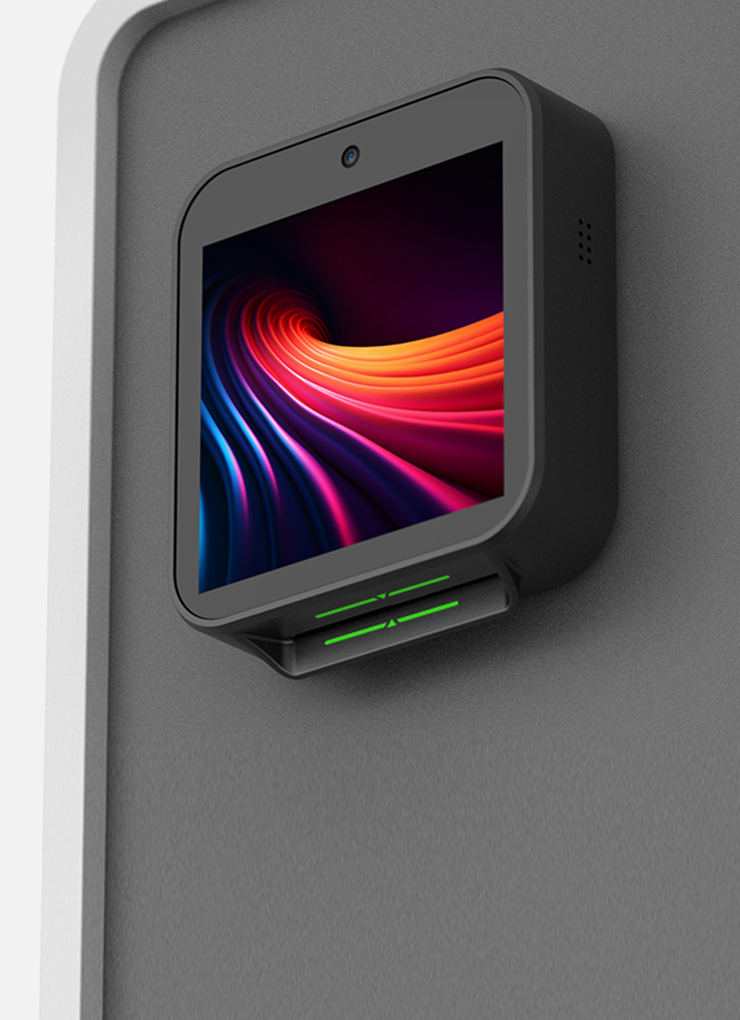

NEW5010

Unattended Terminals

The Android-based NEW5010 offers better

configuration & deployment capabilities than any

other UPT on the market, a perfect solution for

self-service kiosks and EV charging stations.

High Performance

Cortext-A53 Quad Core, 2.0GHz

OS

Asmart
QR Scanner
IP65 & IK08
PCI PTS 6.x SRED

Excellent performance

Fast transaction processing and optimized machine management through its new generation Quadcore Cortex chipset and latest Asmart operating system.

Simple design Flexible expansion

NEW5010 provides multiple connection methods through expansion modules, including LAN, RS232, USB, MDB and JVMA interfaces. Its modular design makes maintenance and field upgrades easier than ever before.

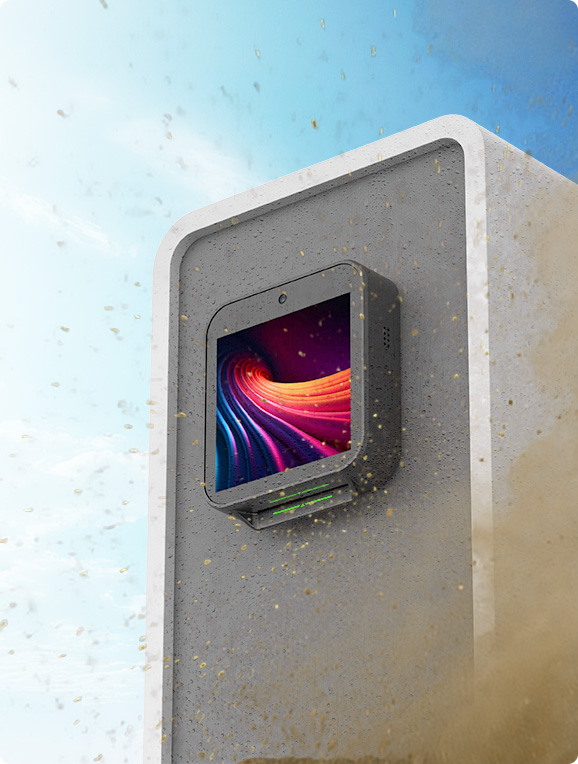

Exceptionally Durable

The NEW5010 has been designed to offer excellent protection against impact, vandalism, water, moisture, and dust, making it suitable for both indoor & outdoor use.

Lightweight contactless unattended

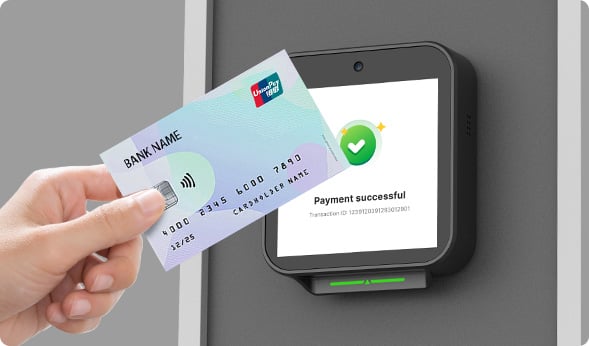

Pay with NFC-enabled devices and contactless cards. Scan to pay for seamless QR code transactions.

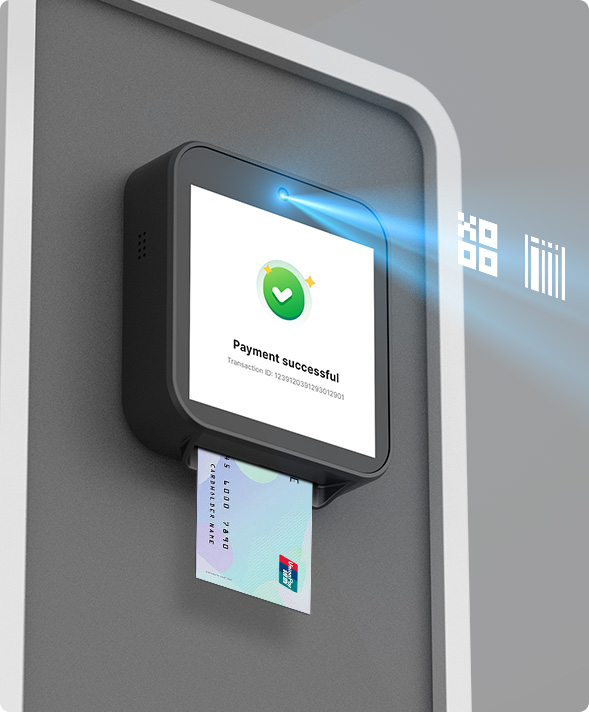

QR code & IC card

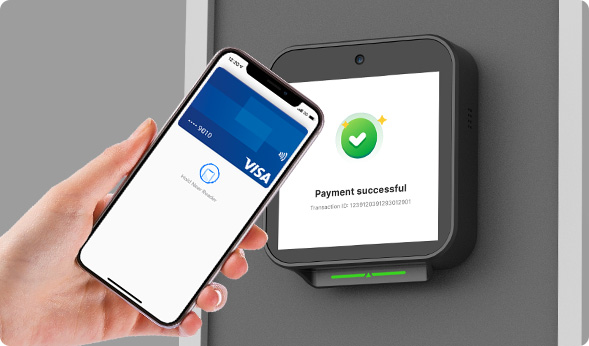

Mobile NFC
NFC

Flexible Adaptability

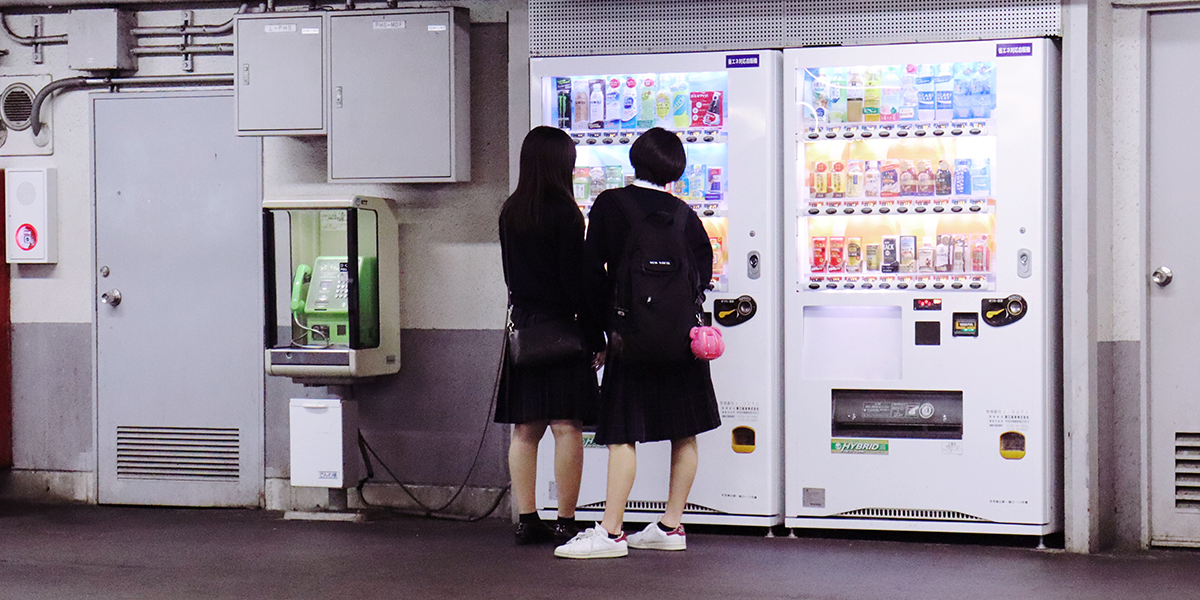

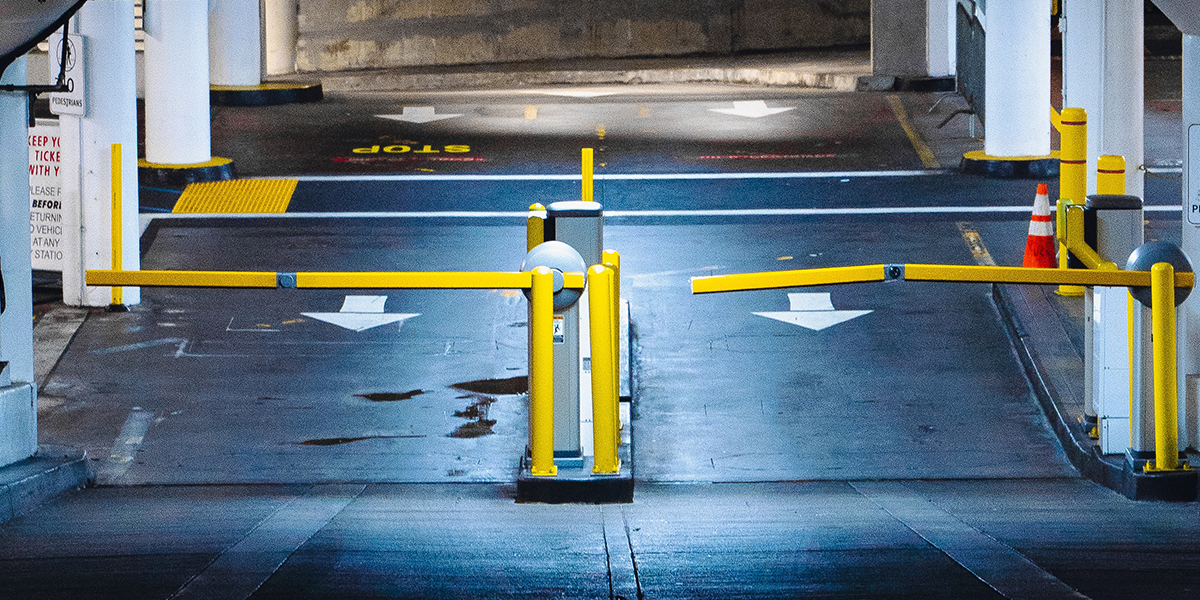

Self-Service Ticket Machines Self-Service Shopping Vending Machines Parking Lot

Technical Specifications

OS

Asmart
Processor

4*A53，2.0GHz Cortex-M4F, Maximum192MHz
Memory

2GB RAM+8GB ROM optional 2GB RAM+32GB ROM
Display

4", TFT IPS, 480x480, Capacitive Touch Screen 2-points Touch
Buttons

1 settings button
Card Reader

Magnetic Card Reader (Optional) Smart Card Reader Contactless Card Reader

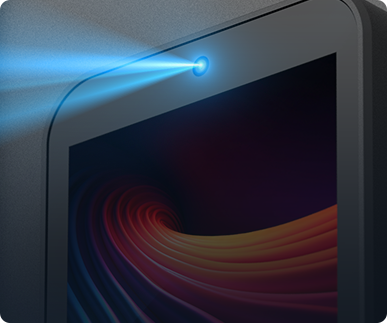

Scanning

Front：2MP FF, 5MP AF（Optional） Reads 1D & 2D Codes
Communication

Support 4G（LTE）/3G(WCDMA)/2G(GPRS) WiFi：(802.11 a/b/g/n)2.4G/5G；Bluetooth 5.0
GPS

GPS | GLONASS | BEIDOU

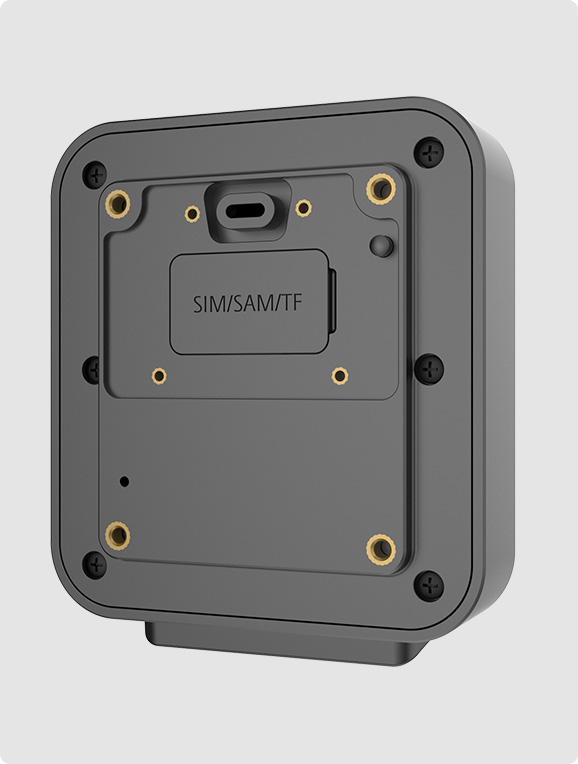

Card Slots

1*Mini SIM+1*Mini SAM 1*TF(Optional)；1*eSIM (Optional)
Audio

1*Buzzer. Optional, 1*speaker
Dimensions

112*96.3*26.3mm(L×W×H); Cutout: 78.5*67.5mm
Weight

330g
Adapter / Power

Input: 100-240V AC, 50/60Hz Output: 5V DC, 3A
Ports

1*Type-C USB (Requires customized cable). 1*SMA(4G)(optional)
Accessories

Mounting Fixture 1*HUB(Optional)：1*Ethernet, 1*USB-C(only power or debug), 2*USB-A Host，1*MDB(Master or slave) or 1*JVMA 1*External 4G Antenna (Optional)
Water & Dust Proof

IP65(Outdoor Version); IP52(Indoor Version)
Impact Protection

IK08
Remote download

Support OTA update
Language

English
Working Environment

-10℃ ~ +50℃(Indoor Version); -20℃ ~ +70℃(OutdoorVersion); 5%~95% Non-condensing
Storage Environment

-20℃ ~ +60℃(Indoor Version); -30℃ ~ +75℃(Outdoor Version); 5%~95% Non-condensing
Certifications

PCI PTS 6.X, EMV L1&L2, EMV CL L1, Quick pass, Visa PayWave, MasterCard PayPass, American Express, Discover D-PAS, JCB, Felica, TQM, RoHS，Interac flash, IP65, IK08, ATEX, Bancomat on Going.
