NEW9810

Smart POS Terminal

Versatile smart POS for various scenarios

Processor

Cortext-A53 Quad Core, 2.0GHz CPU

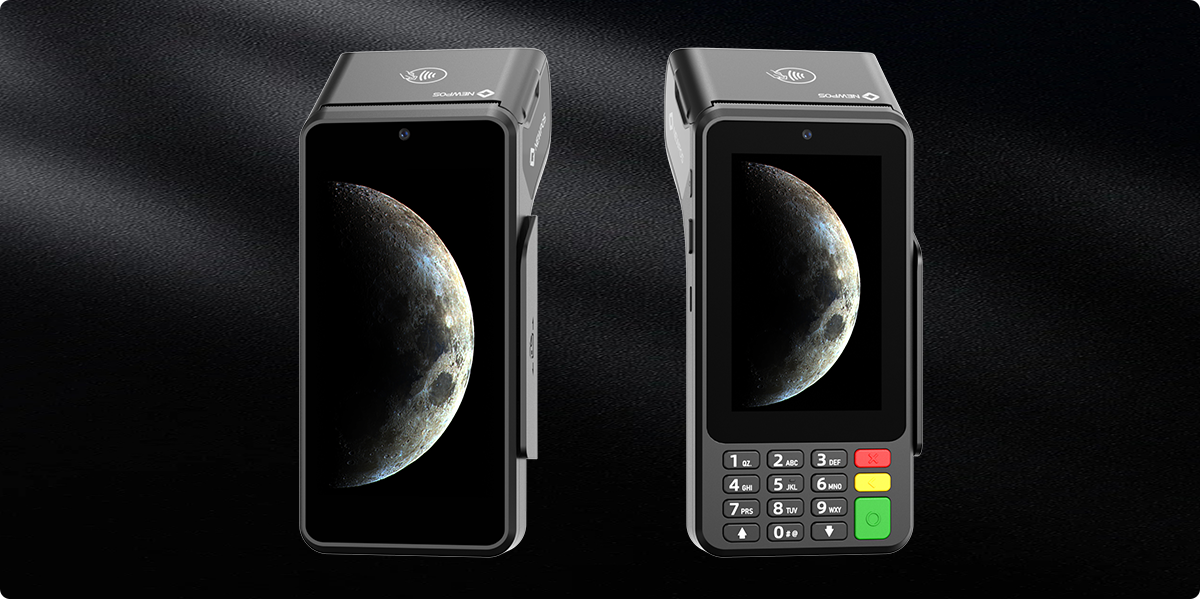

Two display sizes

4 inch with keyboard
5 inch Full Screen

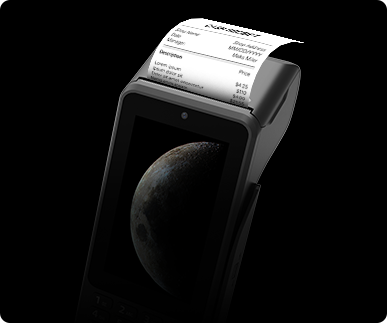

Fast Thermal Printer

Printer speed: 80mm/s

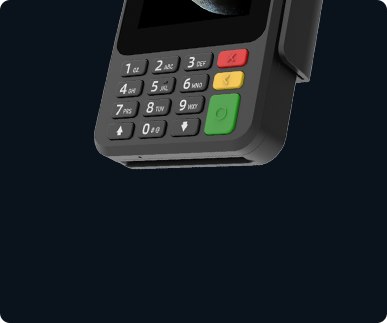

Keypad

Durable and comfortable design
Compatible design for the visually impaired
Long-lasting Battery

7.2V/2600mAh
Option:7.2V/3350mAh

High Performance

NEW9810 is equipped with a Quad-Core 2.0GHz high-performance CPU, capable of smoothly running the Android 13 system on 1GB DDR + 8GB eMMC

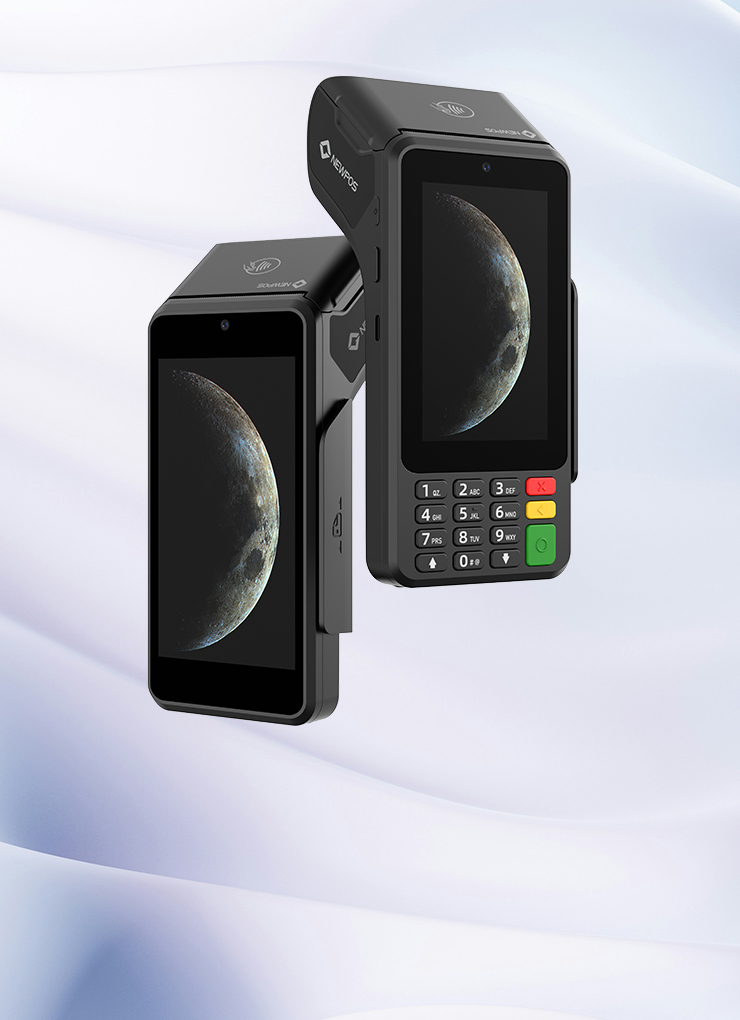

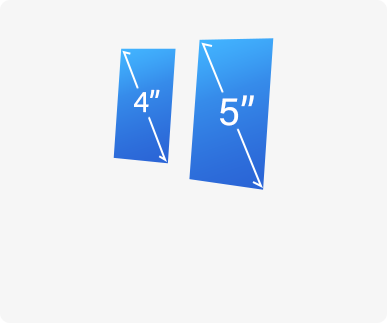

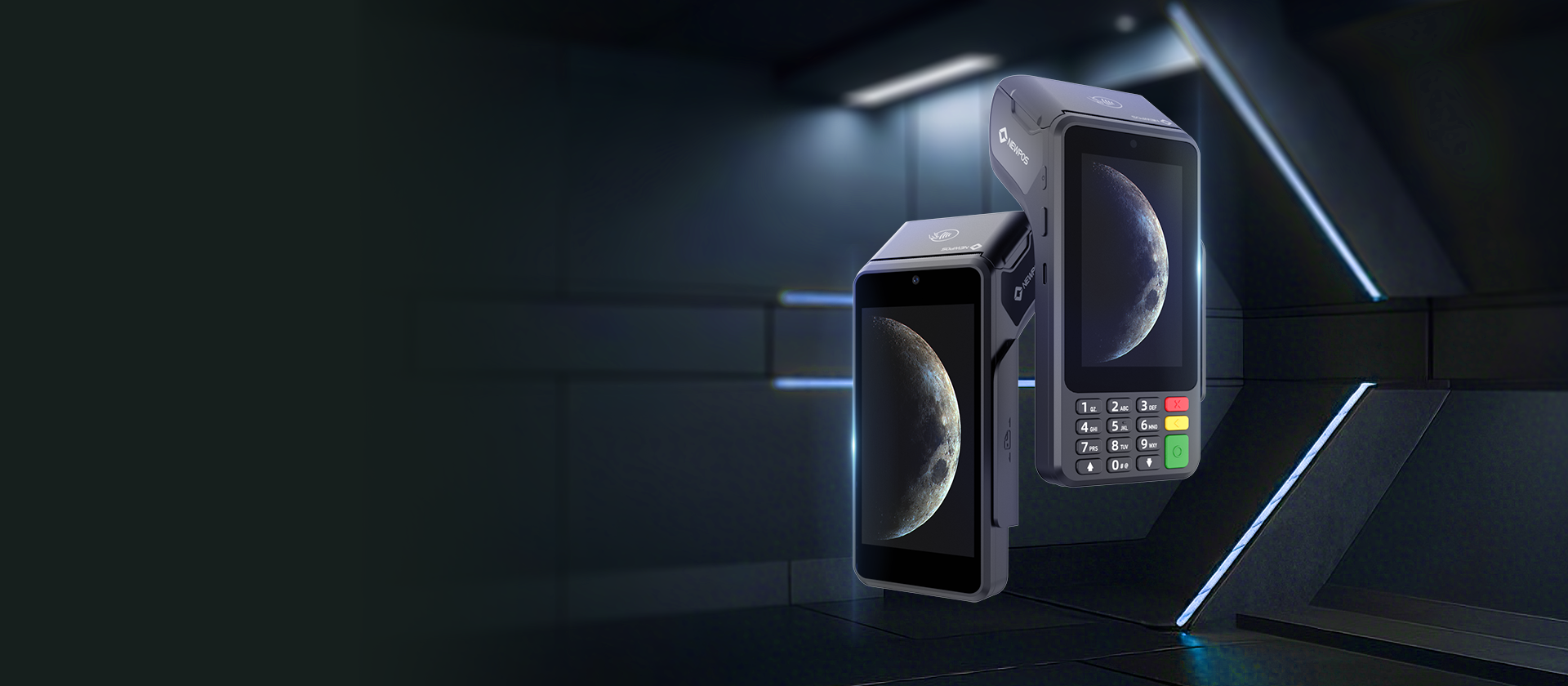

Two display sizes, one solution

The NEW9810 platform offers dual screen configuration options, providing enhanced versatility for a broader range of application scenarios

Advanced Communications

The NEW9810 integrates multiple wireless communication bands, enabling secure payments anytime, anywhere.

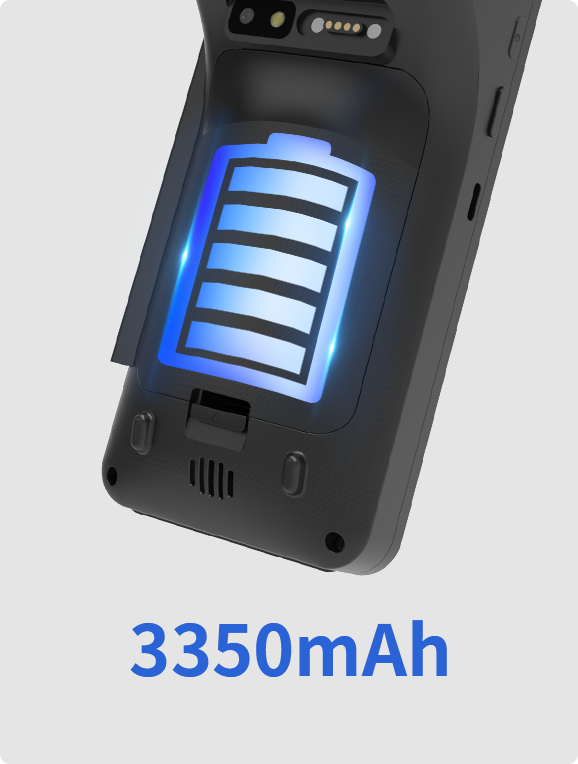

Long-lasting Battery

Equipped with a high-voltage dual- cell lithium battery, paired with a 7.2V/2600mAh capacity, the product offers extended usage time.

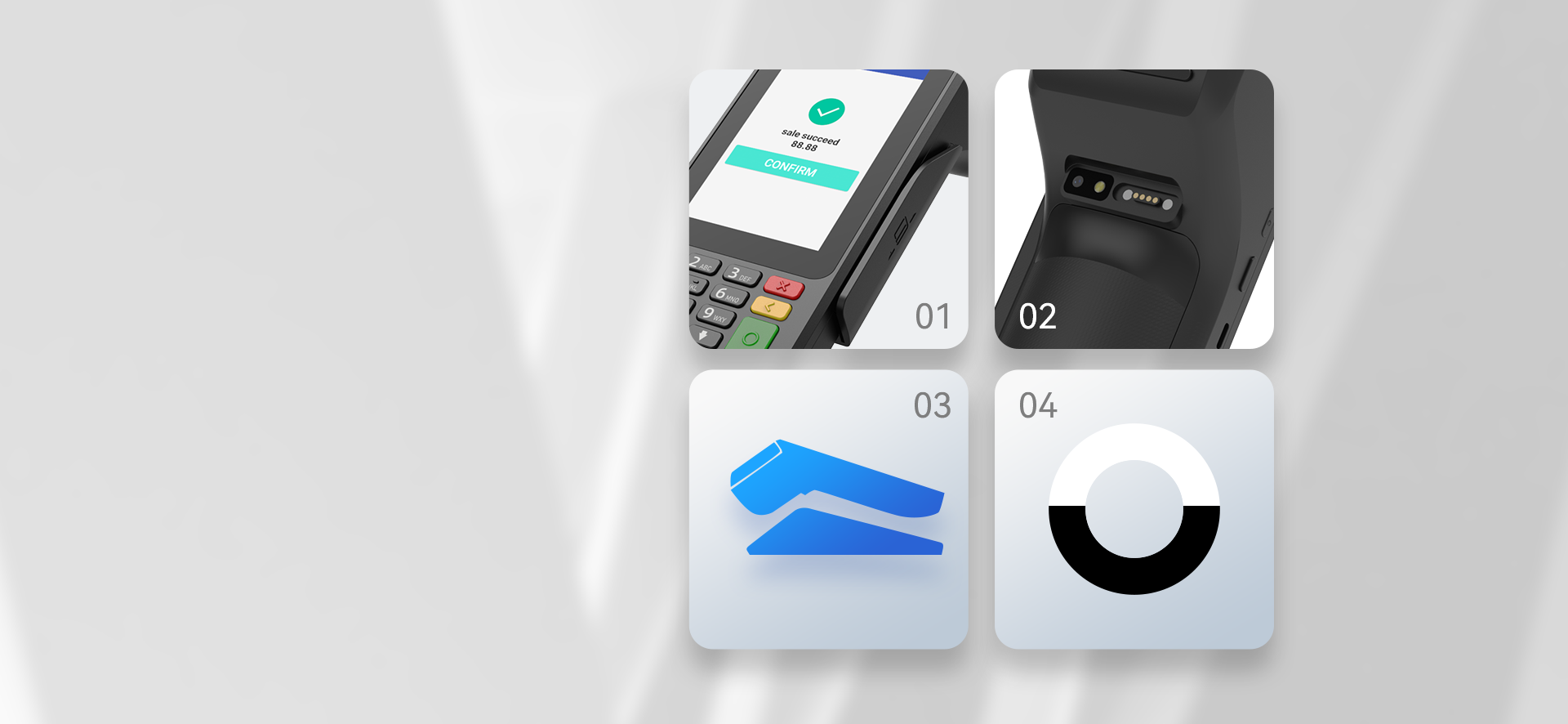

More options

01、Magnetic stripe card function
02、Magnetic charging interface
03、Charging cradle
04、Customized Color

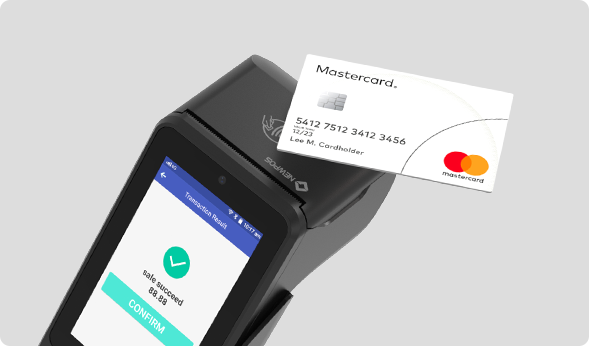

Payment Methods

NEW9810 accepts payments of magnetic stripe cards, IC cards and contactless/NFC.

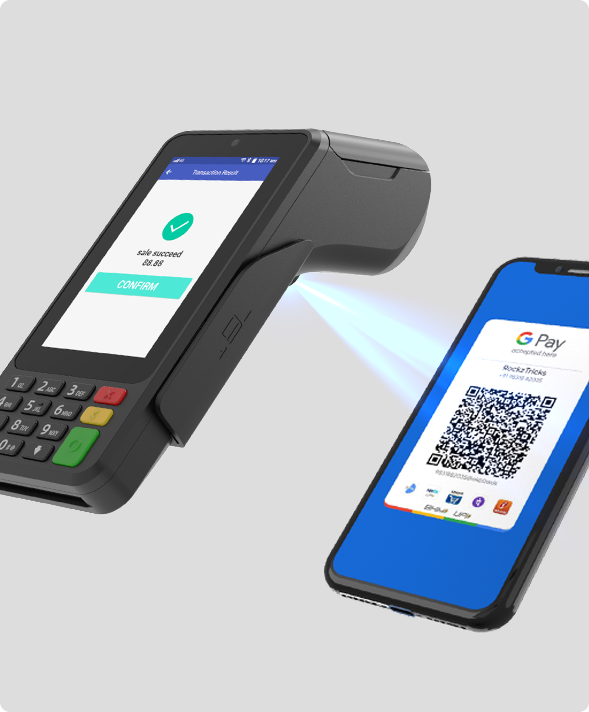

QR codes

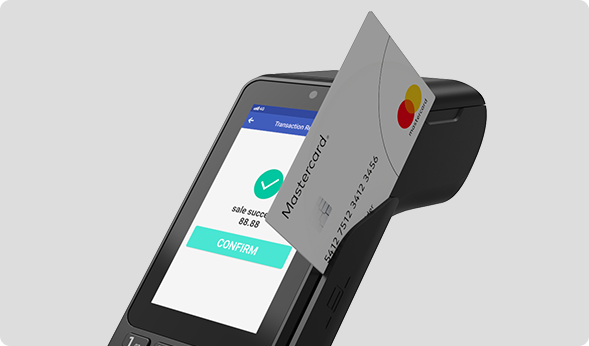

NFC

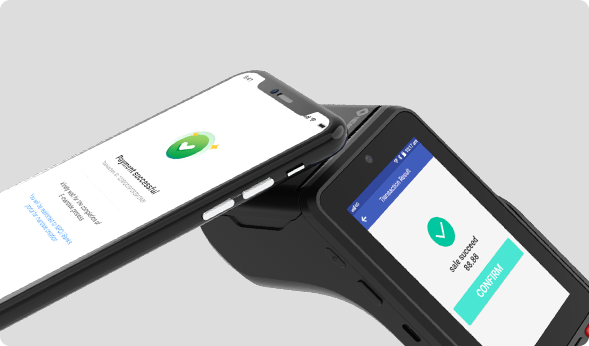

Mobile Payment
Magnetic Card

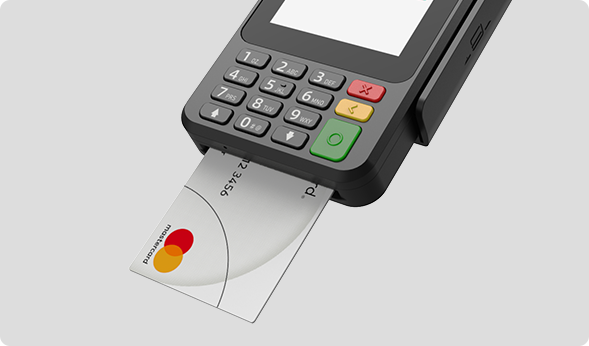

IC Card

Flexible Adaptability

Restaurant Hotels Banks Retail

Technical Specifications

OS

Android 13
Processor

Cortex A53 Quad-Core, 2.0GHz + Secure Processor
Memory

1GB RAM + 8GB Flash 2GB RAM + 32GB Flash(Optional) Extended microSD Card Slot Up to 128GB
Card Readers

Magnetic Stripe | Chip & PlN | Contactless Chip & PlN | Contactless (Optional)
Cameras

Front: N/A Front: 2MP Fixed Focus(Optional) Rear: 0.3MP Fixed Focus Rear: 5MP Auto Focus, with Flashlight (Optional)
Wireless Communication

2G/3G/4G
Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz
Bluetooth5.0
Battery

7.2V/2600mAh/18.72Wh (Equal to 3.6V/5200mAh)
7.2V/3350mAh/24.12Wh (Equal to 3.6V/6700mAh)(Optional)
Printer

Speed: 80mm/sec | Paper Roll Outer Diameter: 40mm | Paper width: 58mm
Card Solt

2 Nano SIM + 2 Micro SAM + 1 SD
eSIM + 1 Nano SIM + 2 Micro SAM + 1 SD(Optional)
Positioning

GPS I GLONASS I BEIDOU | GALILEO
Ports

1 USB Type-C OTG | 4 PIN POGO PIN
Audio

1 Speaker
1 Microphone(Optional)
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: 5.0V DC, 2.0A
Operating Environment

Operating Temperature: 0°C~50°C (32°F~122°F) Relative Humidity: 5%~95% (Non-Condensing)
Storage Environment

Storage Temperature: -20°C~60°C (-4°F~140°F) Relative Humidity: 5%~95% (Non-Condensing)
Accessories

Charging Base: 1 Power Port (Type-C) (Optional)
Magnetic Adapter: 4 POGO PIN for Charging (Optional)
Certifications

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | Anatel | ABECS | MasterCard TQM | CE | RoHS | Bancomat on Going
Displays

NEW9810 keypad version
4" IPS, 480 x 800 Pixels
Multi-Point Capacitive Touch Screen

NEW9810 full-screen version
5" IPS FW + 480 x 854 Pixels
Multi-Point Capacitive Touch Screen
5" IPS HD + 720 x 1280 Pixels (Optional)
Multi-Point Capacitive Touch Screen
Keys / Buttons

NEW9810 keypad version
17 Keys: 10 numeric keys | 5 function keys | 1 Power ON/OFF | 1 Custom Key
Adjustable Backlight(Optional)

NEW9810 full-screen version
1 Power ON/OFF | 1 Custom Key
Physical

NEW9810 keypad version
178 x76.8 x66.1mm, 380g (including battery)

NEW9810 full-screen version
178 x76.8 x66.1mm ,390g (including battery)
