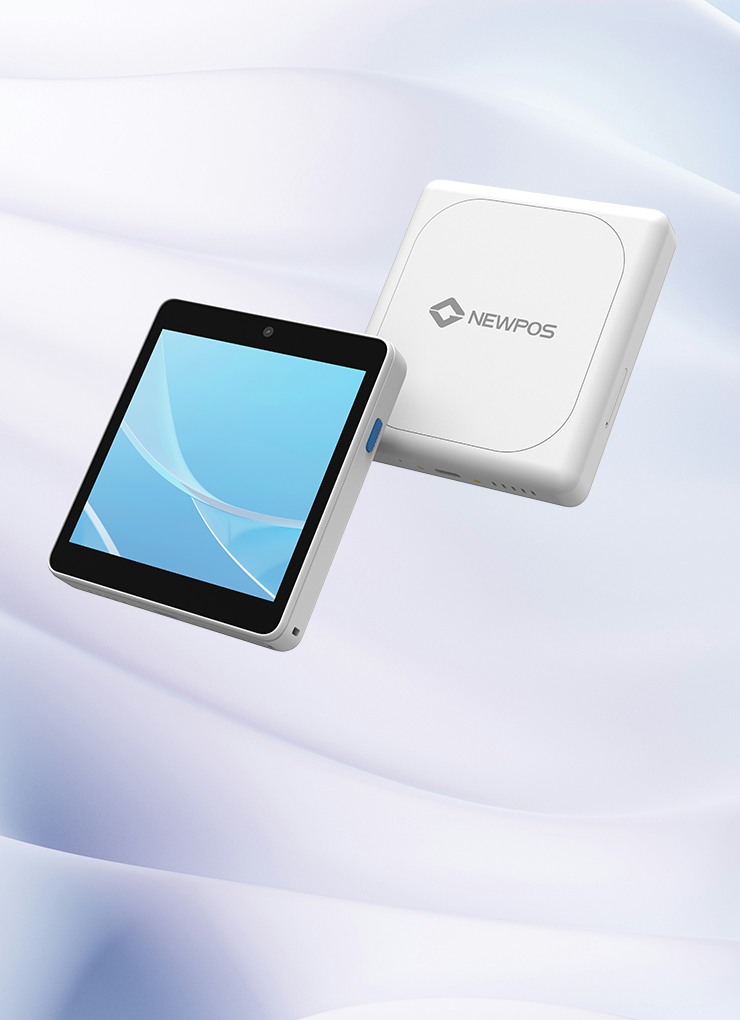

NEW9800

Smart POS Terminal

Slim and stylish style, leading the smart POS trend

Processor

Cortext-A53 Quad Core <br> 2.0GHz CPU

High Performance

NEW9800 is equipped with a Quad-Core 2.0GHz high-performance CPU, capable of smoothly running the Android 13 system on 1GB DDR + 8GB eMMC

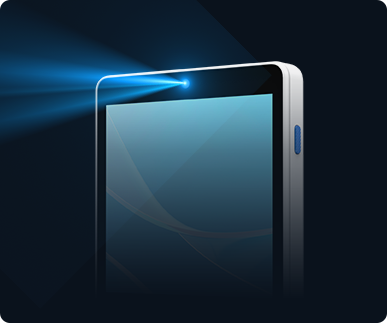

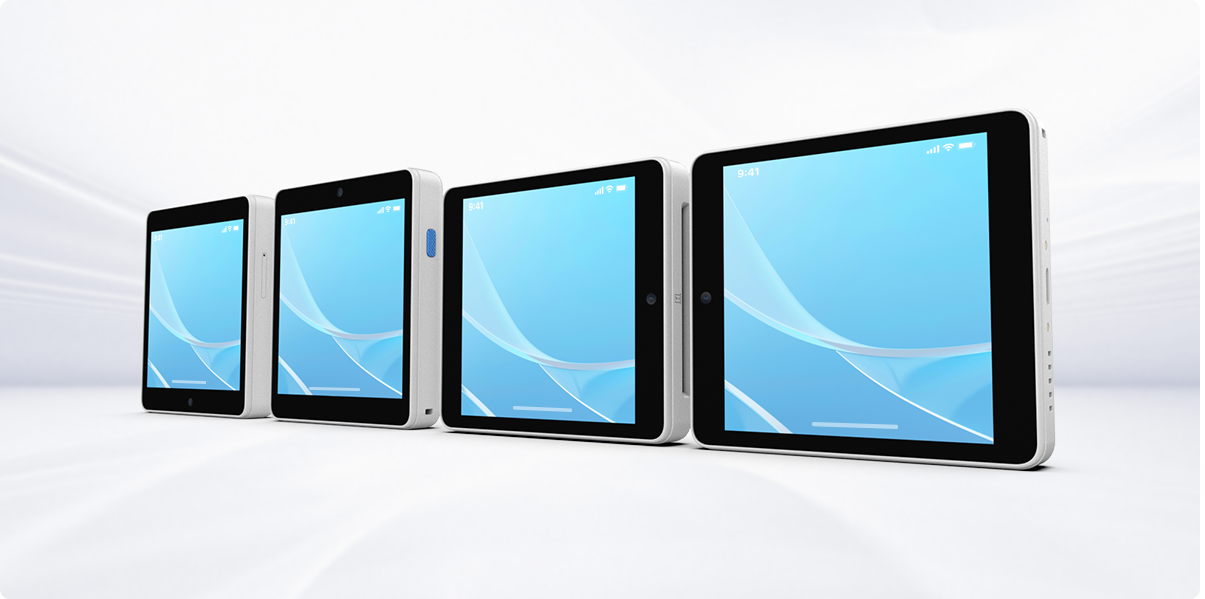

Automatic screen rotation

The screen can rotate automatically based on the usage scenario and installation orientation

Advanced Communications

The NEW9800 integrates multiple wireless communication bands, enabling secure payments anytime, anywhere.

Slim and stylish design that fits effortlessly in your pocket.

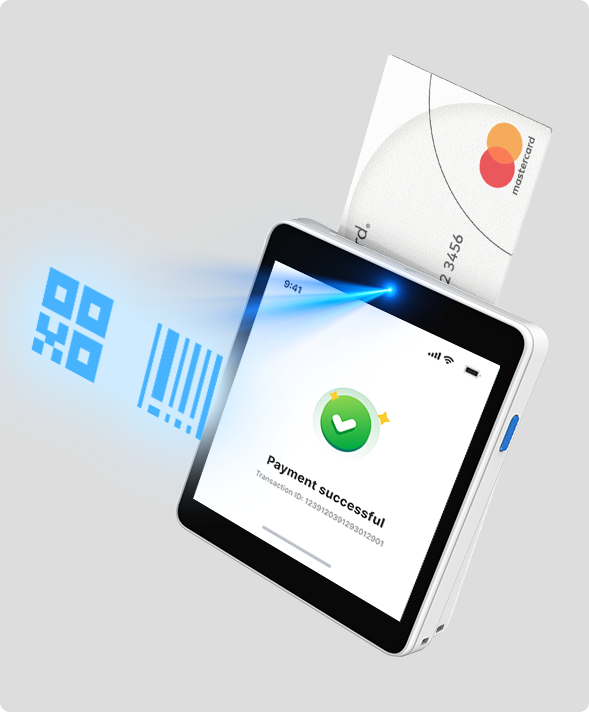

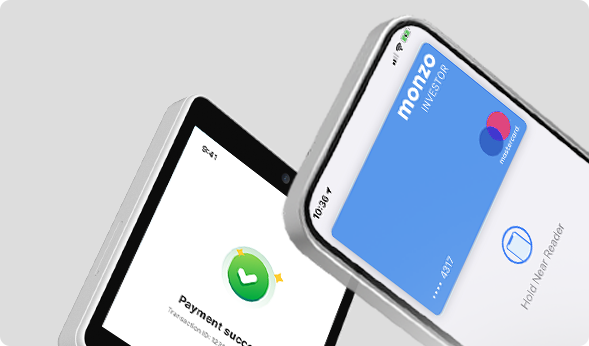

Payments Methods

Technical Specifications

OS

Asmart
Processor

Cortex A53 Quad-Core, 2.0GHz + Secure Processor
Memory

1GB RAM + 8GB Flash 2GB RAM + 32GB Flash (optional)
Card Readers

Chip & PlN | Contactless
Cameras

Front: 0.3MP Fixed Focus Front: 2MP Fixed Focus (optional)
Displays

4" IPS 480 x 480 Pixels Multi-Point Capacitive Touch Screen
Wireless Communication

2G/3G/4G ; Wi-Fi (802.11a/b/g/n/ac), 2.4GHz & 5GHz ; Bluetooth5.0
Battery

3.85V/1700mAh/6.54Wh
Card Slot

1 Nano SIM + 1 Nano SAM (optional) 2 Nano SIM (optional) eSIM + 1 Nano SAM
Positioning

GPS I GLONASS I BEIDOU | GALILEO
Keys / Buttons

1 Power ON/OFF
Audio

1 Speaker 1 Microphone(Optional)
Adapter

Input: 100-240V AC, 50Hz/60Hz | Output: 5.0V DC, 1.0A
Physical

93.3x83.8x16.7mm, 165g (including battery)
Operating Environment

Operating Temperature: 0° C~50° C (32° F~122° F) ; Relative Humidity: 5%~95% (Non-Condensing)
Storage Environment

Storage Temperature: -20° C~60° C (-4° F~140° F); Relative Humidity: 5%~95% (Non-Condensing)
Accessories

Charging Base: 1 Power Port (Type-C) (optional)
Certifications

PCI PTS 6.x | EMV L1 & L2 | EMV CL1 | Visa PayWave l MasterCard PayPass | Unionpay Quickpass | American Express | Discover D-PAS | JCB J/Speedy | MasterCard TQM | CE | RoHS | Bancomat on Going
